SL1588 DC18V 2A同步降壓恒壓IC
發(fā)布日期：2022-07-26 瀏覽次數(shù)：545
DC-DC 18V降壓3.3V電源IC
DC-DC 18V降壓5V電源芯片
DC-DC 18V降壓12V電路
概述
The SL1588 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve a 2A continuous output current over a wide input supply range, with excellent load and line regulation.
The SL1588 requires a minimal number of readily available, external components and is available in a space saving SOT23-6 package.
特點(diǎn)
? Wide 4V to 18V Operating Input Range
? 2A Continuous Output Current
? No Schottky Diode Required
? 500KHz Frequency Operation
? Built-in Over Current Limit
? Built-in Over Voltage Protection
? Internal Soft start
? Output Adjustable from 0.8V
? Integrated internal compensation
? Short Protection with Hiccup-Mode
? Thermal Shutdown
? Available in SOT23-6 Package
? -40°C to +85°C Temperature Range
應(yīng)用范圍
? Digital Set-top Box (STB)
? Tablet Personal Computer (Pad)
? Flat-Panel Television and Monitor
? Wi-Fi Router / AP
? Digital Video Recorder (DVR)
? Portable Media Player (PMP)
? Cable Modem / XDSL
? General Purposes

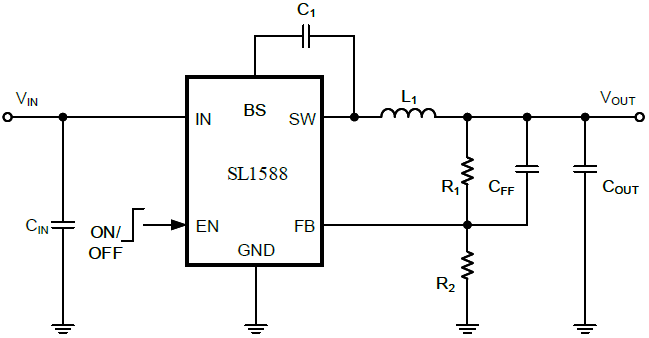

原理圖
