SL1588H 36V/2A 500KHz Synchronous BUCK

General Description

The SL1588H is a low EMI signature, asynchronous, step-down, switch-mode converter with internal power MOSFETs.

It offers a very compact solution to provide a 2A continuous current over a wide input supply range, with excellent load

and line regulation. S L1588H achieves low EMI signature with well controlled switching edges. Fault condition

protection includes programmable-output over-voltage protection, Constant on time Mode, and thermal shutdown.

SL1588H requires a minimal number of readily available standard external components. It is available in SOT23-6 package.

Features

? Wide 4.5V to 36V Operating Input Range

? 2.0A Continuous Output Current

? 500KHz Switching Frequency

? Short Protection with Hiccup-Mode

? Built-in Over Current Limit

? Programmable Output Over-Voltage Protection

? DCM Mode for High Efficiency in Light Load

? Integrated internal Soft-Start

? 120/80mΩ Low RDS(ON) Internal MOSFETs

? Output Adjustable from 0.6V

? Low EMI Signature

? 99% Duty cycle

? Integrated internal compensation

? Thermal Shutdown

? Available in SOT23-6 Package

? Constant on time Mode

Applications

? Automotive Entertainment

? Wireless and DSL Modems

? Computer Entertainment

? Power Supply for Car Chargers

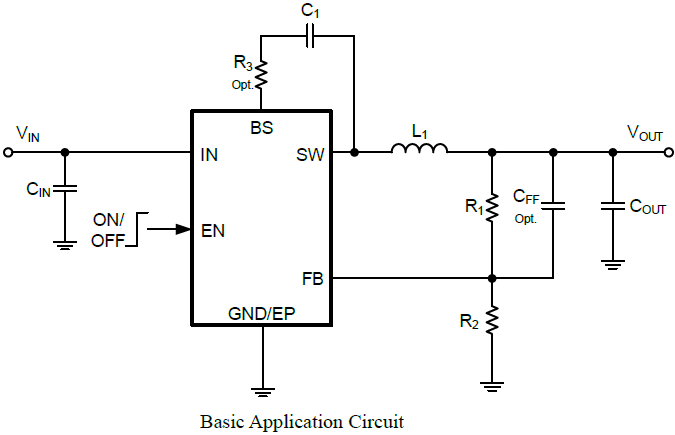

Typical Application Circuit
