1.5MHz、2A高效率降壓DC/DC轉(zhuǎn)換器

dcdc6V低壓降壓恒壓芯片

DC-DC降壓恒壓IC

概述

SL3052 is a high-efficiency DC to DC step down switching regulator, capable of delivering up to 2A

output current. The SL3052 operates in a wide range input voltage from 2.7V to 5.5V making the IC ideal for

low voltage power conversions. Running at a fixed frequency of 1.5MHz allows the use of small inductance

value and low DCR inductors, thereby achieving higher efficiency.

特點(diǎn)

◆Up to 2A Max Output Current

◆2.7V to 5.5V Input Voltage Range

◆Fixed 1.5MHz Switching Frequency r

◆Light Load Operation

◆100% Duty Operation

◆Internal Compensation

◆RoHS Compliant and Halogen Free

應(yīng)用領(lǐng)域

◆USB ports/Hubs

◆Hot Swaps

◆Cell phones

◆Tablet PC

◆Set Top Boxes

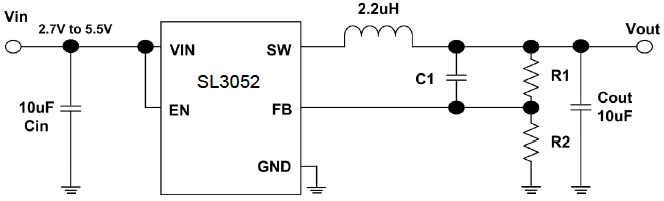

原理圖
