SL8412 具有平均模式恒流控制的LED驅(qū)動器
發(fā)布日期：2022-08-02 瀏覽次數(shù)：900
General Description
The SL8412 is an average current mode control LED driver IC operating in a constant off-time
mode. SL8412 does not produce a peak-to-average error, and therefore greatly improves accuracy,
line and load regulation of the LED current without any need for loop compensation or high-side
current sensing. The output LED current accuracy is ±3%.
The SL8412 can be powered from an 8.0 - 100V supply. PWM & Linear dimming input is provided
that accepts an external control TTL compatible signal. The output current can be programmed by an
internal 250mV reference.
Features
? Fast Average Current Control
? Internal 8 to 100V Linear Regulator
? Linear and PWM Dimming Capability
? Output Short Circuit Protection with Skip Mode
? Requires Few External Components for Operation
Applications
? DC/DC or AC/DC LED Driver Applications
? LED Street Lighting
? Back Lighting of Flat Panel Displays
? General Purpose Constant Current Source
? Signage and Decorative LED Lighting
? Chargers

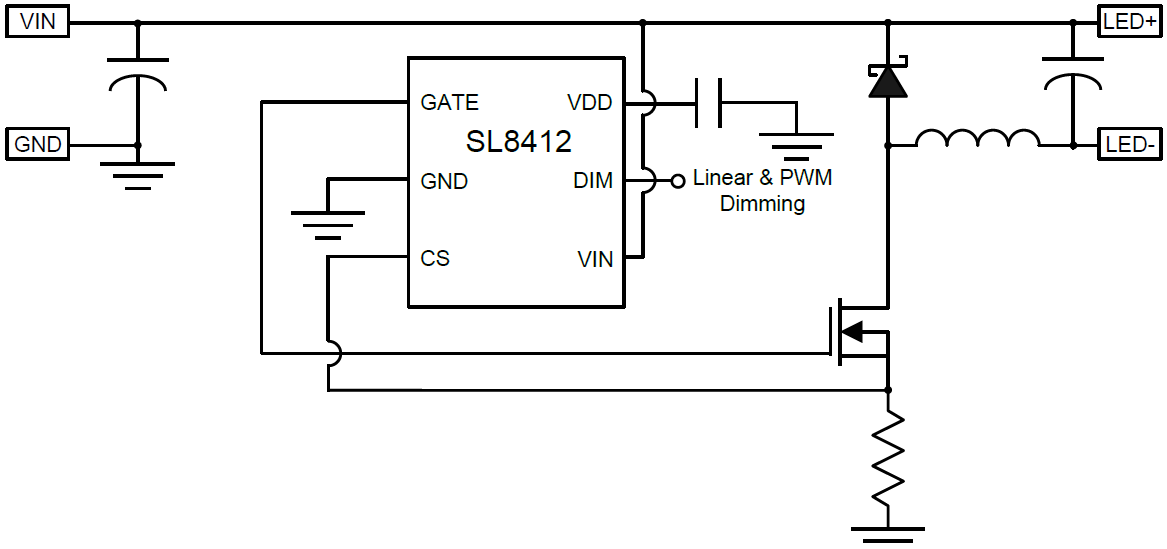

Typical Application Circuit
