SL1586 30V1.2A同步降壓ic
發(fā)布日期：2020-12-03 瀏覽次數(shù)：15338
SL1586 30V1.2A同步降壓IC，dc-dc同步降壓IC,降壓IC,高壓降壓IC
General Description
The SL1586 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power
MOSFETs. It offers a very compact solution to achieve a 1.5A peak output current over a wide input supply range,
with excellent load and line regulation.
The SL1586 requires a minimal number of readily available, external components and is available in a space saving
SOT23-6 package.
Features
? Wide 4V to 30V Operating Input Range
? 1.2A Continuous Output Current
? 1.4MHz Switching Frequency
? Short Protection with Hiccup-Mode
? Built-in Over Current Limit
? Built-in Over Voltage Protection
? Force-PWM Mode
? Internal Soft-Start
? 200mΩ/150mΩ Low RDS(ON) Internal Power MOSFETs
? Output Adjustable from 0.8V
? No Schottky Diode Required
? Integrated internal compensation
? Thermal Shutdown
? Available in SOT23-6 Package
? -40°C to +85°C Temperature Range

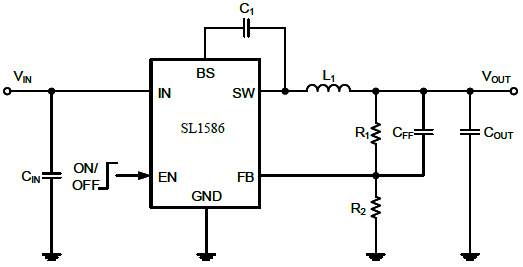

Typical Application Circuit
