SL1585 30V3A dc-dc同步降壓芯片
發(fā)布日期：2020-12-03 瀏覽次數(shù)：13333
SL1585 30V3A 500KHz dc-dc同步降壓芯片,dc-dc降壓芯片,降壓芯片，高壓降壓芯片
General Description
The SL1585 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power
MOSFETs. It offers a very compact solution to achieve a 4A peak output current over a wide input supply range,
with excellent load and line regulation.
The SL1585 requires a minimal number of readily available, external components and is available in a space saving
ESOP8 package.
Features
? Wide 4V to 30V Operating Input Range
? 3A Continuous Output Current
? Fixed 500KHz Switching Frequency
? No Schottky Diode Required
? Short Protection with Hiccup-Mode
? Built-in Over Current Limit
? Built-in Over Voltage Protection
? Internal Soft start
? Output Adjustable from 0.925V
? Integrated internal compensation
? Thermal Shutdown
? Available in ESOP8 Package
? -40°C to +85°C Temperature Range
Applications
? CCTV Camera
? Flat-Panel Television and Monitor
? Battery Charger
? Distributed Power Systems

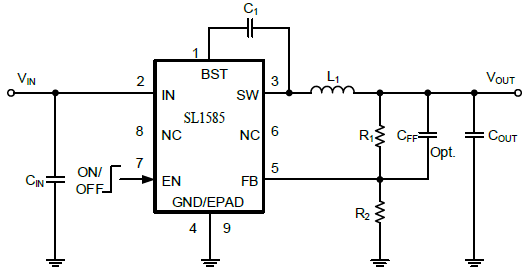

Typical Application Circuit
