森利威爾 SL9486A ESOP8

5V-100V 3.5A峰值電流 完全兼容MP9486 MP9486A MP9487

? DESCRIPTION

The SL9486A is a high-voltage, step-down, switching

regulator that delivers up to 2A of continuous current to the

load. It integrates a high-side, high-voltage, power

MOSFET with a current limit of 3.5A, typically. The wide 5V

to 100V input range accommodates a variety of step-down

applications, making it ideal for automotive, industry, and

lighting applications. Hysteretic voltage-mode control is

employed for very fast response.

The switching frequency can be up to 1MHz, allowing for

small component size. Thermal shutdown and short-circuit

protection (SCP) provide reliable and fault-tolerant

operations. A 200μA quiescent current allows the SL9486A

to be used in battery-powered applications.

The SL9486A is available in ESOP8 package.

? FEATURES

?Wide 5V to 100V Input Range

?3.5A Typical Peak Switching Current Limit

?Hysteretic Control: No Compensation

?Up to 1MHz Switching Frequency

?PWM Dimming Control Input for LED Application

?Short-Circuit Protection (SCP) with Integrated

High-Side MOSFET

?200μA Quiescent Current

?Thermal Shutdown

?Packages: Pb-free Packages, ESOP8

? APPLICATIONS

?Scooters, E-Bike Control Power Supplies

?Solar Energy Systems

?Automotive System Power

?Industrial Power Supplies

?High-Power LED Drivers

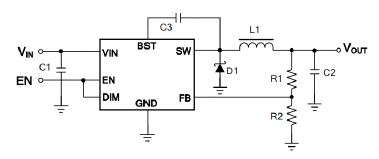

? TYPICAL APPLICATION

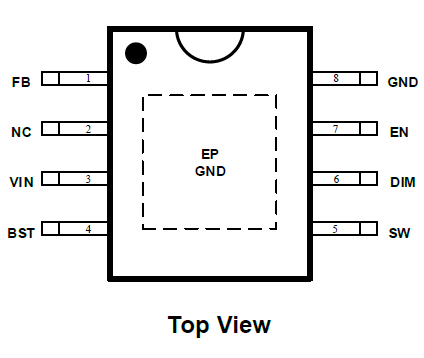

? TERMINAL CONFIGURATION
