SL1586A 28V降壓2A同步降壓穩壓芯片
發布日期：2022-07-27 瀏覽次數：961
dcdc28V降3.3V同步降壓穩壓電路
dcdc28V降壓5V同步降壓芯片
dcdc 28V降壓12V同步降壓IC
說明
The SL1586A is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power
MOSFETs. It offers a very compact solution to provide a 2A continuous output current over a wide input supply
range, with excellent load and line regulation. ECOT force-CCM control operation provides very fast transient
response and easy loop design as well as very tight output regulation.
The SL1586A requires a minimal number of readily available, external components and is available in a space saving
SOT23-6 package.
特點
? Wide 4.5V to 28V Operating Input Range
? 2A Continuous Output Current
? 500K Switching Frequency
? ECOT Mode Control with Fast Transient
Response
? Built-in Over Current Limit
? Built-in Over Voltage Protection
? Continuous Conduction Mode (CCM)
? Internal Soft-Start
? 100mΩ/50mΩ Low RDS(ON) Internal Power
MOSFETs
? Output Adjustable from 0.6
? No Schottky Diode Required
? Short Protection with Hiccup-Mode
? Integrated internal compensation
? Thermal Shutdown
? Available in SOT23-6 Package
? -40°C to +85°C Temperature Range
應用領域
? Automotive Systems
? Network Terminal Equipment
? Security Monitoring Camera
? Printer Systems
? Industrial Power Systems
? Distributed Power Systems

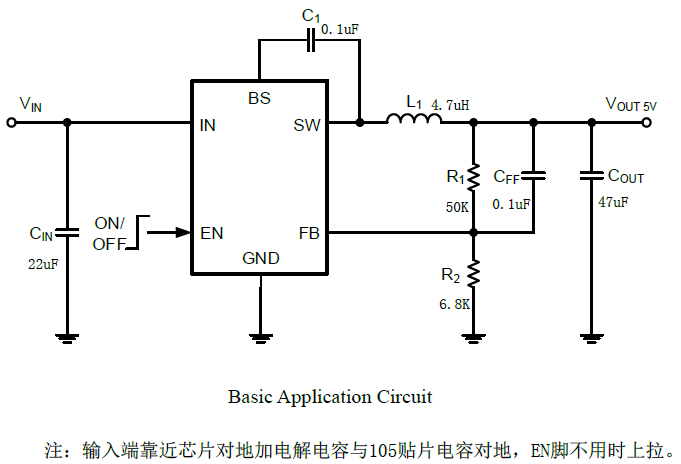

電路圖
